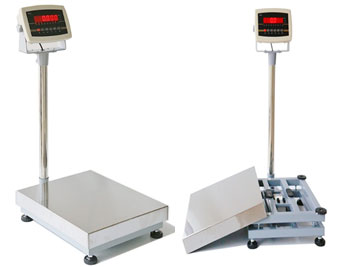

CP-1212
Specifications and Features
- Accuracy class: Ⅲ
- Regular weighing functions
- Power supply: AC 110/220V or 4V/4Ah rechargeable battery
- Display: 6-digit LED with backlight, 20 mm Digit size
- Fully welded structure
- Carbon steel scale body with 304 stainless steel top plate
- Surface treated with shot blasting and epoxy coating; Stainless steel top plate with surface polish
- Adjustable indicator angle
- Stainless steel scale structure (optional)
Specification:
|

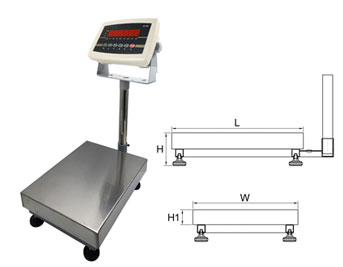

Dimensions (Unit:mm)
|
| Model |
Capacity |
L |
W |
H |
H1 |
| CP-1212-3040 |
30~150kg |
300 |
400 |
118 |
65 |
| CP-1212-4050 |
30~150kg |
400 |
500 |
118 |
65 |
| CP1212-4560 |
30~600kg |
450 |
600 |
140 |
65 |
| CP-1212-5060 |
30~600kg |
500 |
600 |
140 |
90 |
| CP-1212-6080 |
30~600kg |
600 |
800 |
150 |
90/110 |
CP-1212
Specification Features
- Accuracy class: Ⅲ
- Regular weighing functions
- Power supply: AC 110/220V or 4V/4Ah rechargeable battery
- Display: 6-digit LED with backlight, Digit size 20 mm
- Material: mild steel or stainless steel, chequered or flat platform plate, 5mm, 6mm & 8mm thickness plates are available
- U-shaped steel welded structure with high strength design
- Mild steel platform: shot blasting, spray paint processing
- Stainless steel platform with surface polished
- 4pcs shear beam load cells
Specification:
|
Dimensions (Unit:mm) |
| Model |
Capacity |
L |
W |
H |
| CP-1212-0808 |
1~3t |
800 |
800 |
110 |
| CP-1212-0810 |
1~3t |
800 |
1000 |
110 |
| CP-1212-1010 |
1~3t / 5t |
1000 |
1000 |
110 |
| CP-1212-1012 |
1~3t / 5t |
1000 |
1200 |
110 |
| CP-1212-1212 |
1~3t / 5t |
1200 |
1200 |
110 |
| CP-1212-1215 |
1~3t / 5t |
1200 |
1500 |
110 |
| CP-1212-1515 |
1~3t / 5t |
1500 |
1500 |
110 |
| CP-1212-1520 |
1~3t / 5t / 10t |
1500 |
2000 |
110 / 110 / 135 |
| CP-1212-1525 |
1~3t / 5t / 10t |
1500 |
2500 |
110 / 110 / 135 |
| CP-1212-1530 |
1~3t / 5t / 10t |
1500 |
3000 |
130 / 130 / 140 |
| CP-1212-2020 |
1~3t / 5t / 10t |
2000 |
2000 |
110 / 110 / 140 |
| CP-1212-2030 |
1~3t / 5t / 10t |
2000 |
3000 |
130 / 130 / 140 |
| CP-1212-2040 |
1~3t / 5t / 10t |
2000 |
4000 |
130 / 140 / 140 |
* All above sizes are available in stainless steel structure.
CP-1212
Specification Features
- Accuracy class: Ⅲ
- Regular weighing functions
- Power supply: AC 110/220V or 4V/4Ah rechargeable battery
- Display: 6-digit LED with backlight, Digit size 20 mm
- U-shaped structure, good solution for pallet weighing
- Two rollers and a handle for easily moving
- Material: mild steel or stainless steel
- Mild steel platform: shot blasting, spray paint processing
- Stainless steel platform surface polished
- 4pcs shear beam load cells
Specification:
|
Dimensions (Unit:mm) |
| Model |
Capacity |
L |
W |
H |
H1 |
| CP-1212-1.2*0.84 |
1~3t |
1200 |
840 |
120 |
85 |
| CP-1212-1.26*0.92 |
1~3t |
1260 |
920 |
120 |
85 |
* All above sizes are available in stainless steel structure.
CP-1212
Specification Features
- Accuracy class: Ⅲ
- Regular weighing functions
- Power supply: AC 110/220V or 4V/4Ah rechargeable battery
- Display: 6-digit LED with backlight, Digit size 20 mm
- U-shaped structure with M12 fixed supporting feet
- Rollers and handles for easily moving
- Material: mild steel or stainless steel
- Mild steel platform: shot blasting, spray paint processing
- Stainless steel platform surface polished
- 4pcs shear beam load cells
Specification:
|
Dimensions (Unit:mm) |
| Model |
Capacity |
L |
W |
H |
H1 |
| CP-1212-100*1000 |
1~3t |
1000 |
1060 |
100 |
100 |
| CP-1212-100*1200 |
1~3t |
1200 |
1260 |
100 |
100 |
* All above sizes are available in stainless steel structure.
///////////////////////////////////
// -->
