Dynamometers

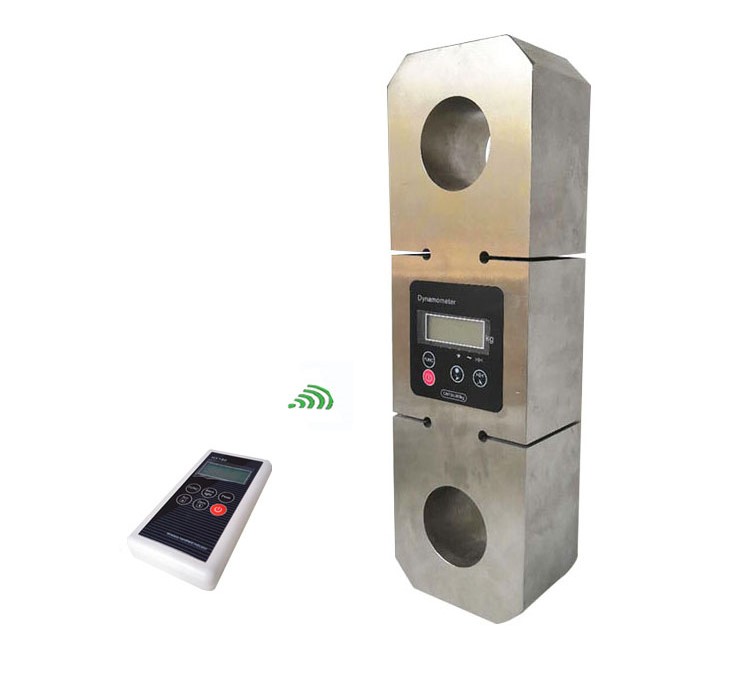

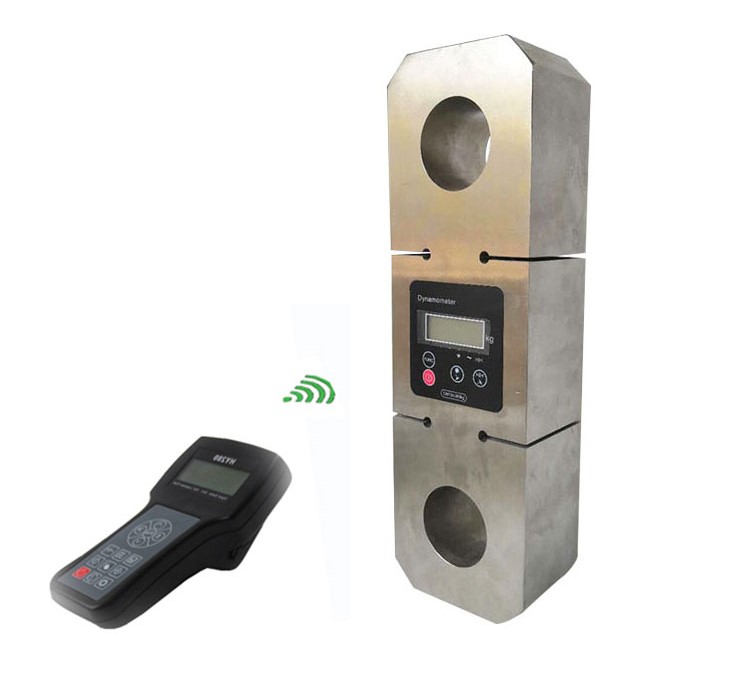

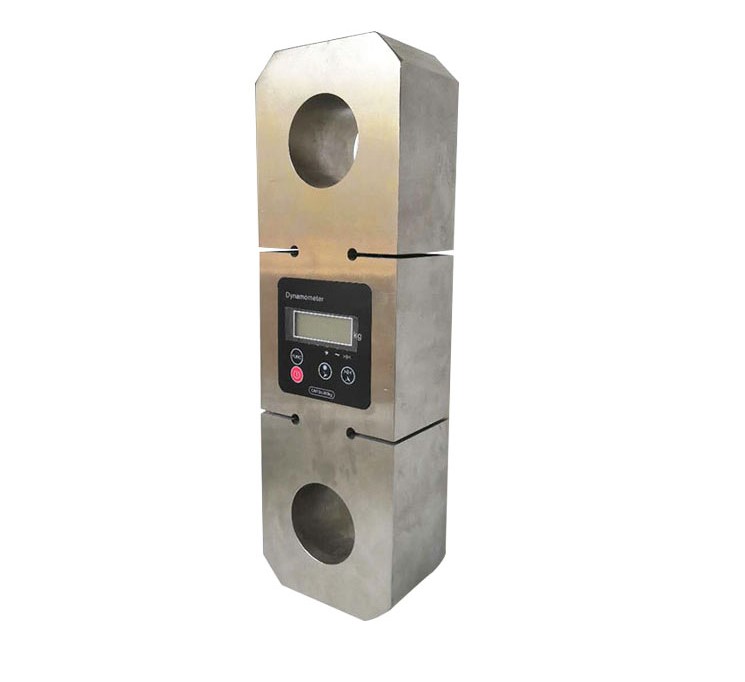

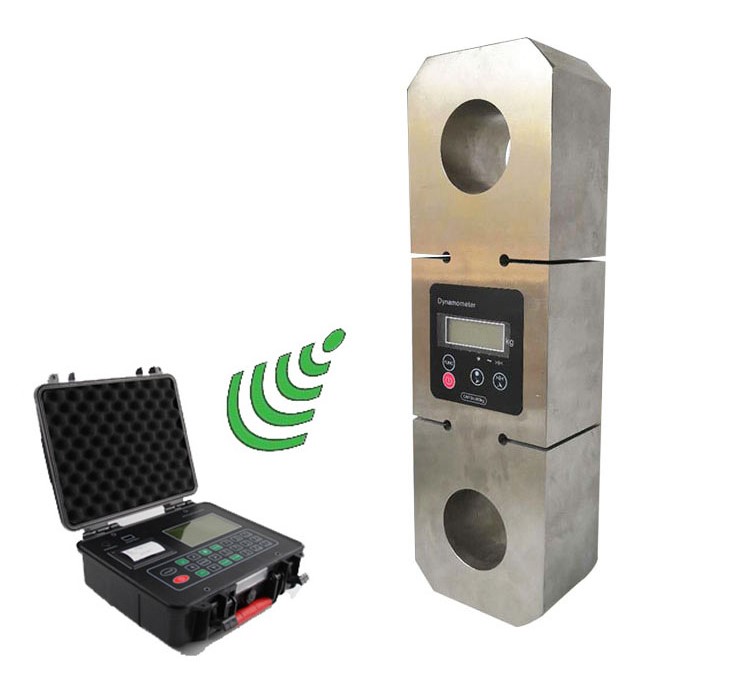

LOAD LINK DYNAMOMETERS
CS-DY1 1-3/5/10/20/30/50/100 Ton
- Capacity:1-3/5/10/20/30/50/100 Tons
- Compact design.
- Wireless handheld indicator for easy operation.
- Longer battery life.
TECHNICAL PARAMETERS
- Accuracy: GradeⅢ, n=3000
- Sample Rate： 80 times/second
- Scale interval: 1/2/5/10/20/50 (Selectable)
- Display： 6 bits LCD，6 state indicating signals Wireless signal
- Interface： Wireless signal
- Power supply: Battery AA 1.5V*3
- Operating temp.: -10～45℃；
- Relative humidity: ≤90%RH
- transporting temp.: -20～50℃

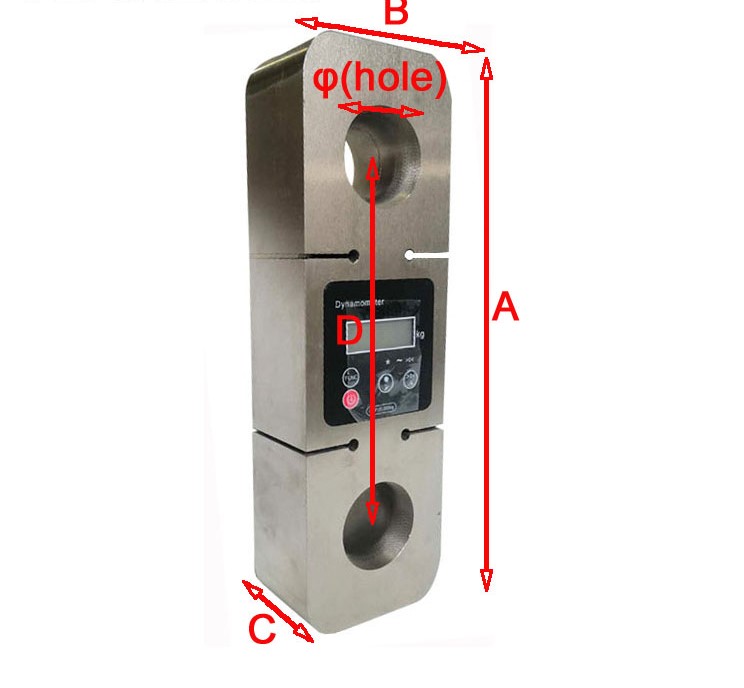

Specification:
| Model |
Cap. |
Div |
A |
B |
C |
D |
φ |
Material |
| - |
- |
- |
|
(mm) |
|
|
|
- |
| CS-DY1-03 | 1~3t | 1kg | 260 | 100 | 35(64) | 200 | 27 | Alloy |
| CS-DY1-05 | 5t | 2kg | 260 | 100 | 35(64) | 200 | 27 | Alloy |
| CS-DY1-10 | 10t | 5kg | 320 | 104 | 48(66) | 230 | 37 | Alloy |
| CS-DY1-20 | 20t | 10kg | 375 | 115 | 70 | 240 | 52 | Alloy |
| CS-DY1-30 | 30t | 10kg | 420 | 130 | 80 | 285 | 58 | Alloy |
| CS-DY1-50 | 50t | 20kg | 465 | 150 | 80 | 305 | 72 | Alloy |
| CS-DY1-100 | 100t | 50kg | 570 | 184 | 126 | 360 | 102 | Alloy |
DYNAMOMETERS

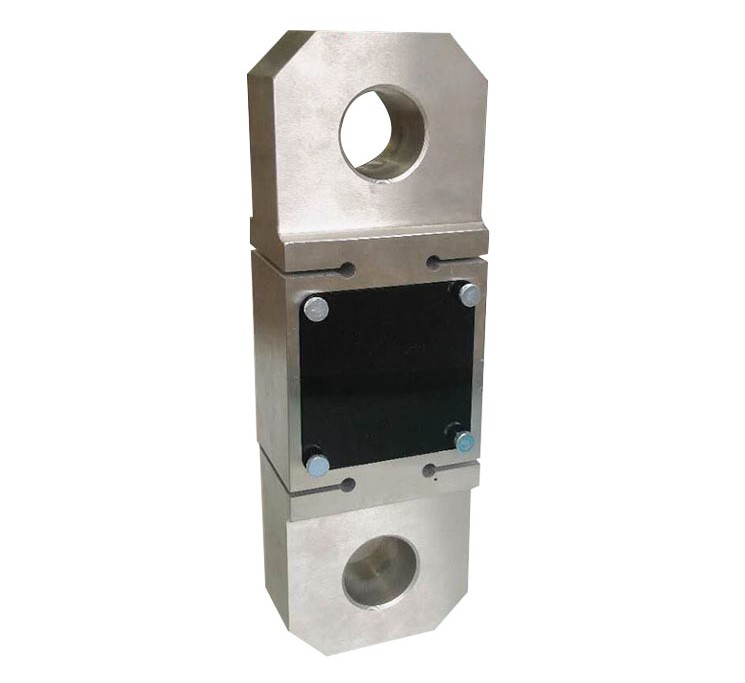

LOAD LINK TENSION DYNAMOMETERS WITH WATER PROOF PANEL
CS-DY2 1-3/5/10/20/30/50/100 Ton
- Capacity:1-3/5/10/20/30/50/100 Tons
- Compact design.
- Wireless handheld indicator for easy operation.
- Longer battery life.
TECHNICAL PARAMETERS
- Accuracy: GradeⅢ, n=3000
- Sample Rate： 80 times/second
- Scale interval: 1/2/5/10/20/50 (Selectable)
- Display： 6 bits LCD，6 state indicating signals
- Interface： Wireless signal
- Power supply: Battery AA 1.5V*3
- Operating temp.: -10～45℃；
- Relative humidity: ≤90%RH
- transporting temp.: -20～50℃
Specification:
| Model |
Cap. |
Div |
A |
B |
C |
D |
φ |
Material |
| - |
- |
- |
|
(mm) |
|
|
|
- |
| CS-DY2-03 | 1~3t | 1kg | 260 | 134 | 35(64) | 200 | 27 | Aluminum alloy |
| CS-DY2-05 | 5t | 2kg | 260 | 134 | 35(64) | 200 | 27 | Alloy |
| CS-DY2-10 | 10t | 5kg | 320 | 134 | 48(66) | 230 | 37 | Alloy |
| CS-DY2-20 | 20t | 10kg | 375 | 134 | 70 | 240 | 52 | Alloy |
| CS-DY2-30 | 30t | 10kg | 420 | 150 | 80 | 285 | 58 | Alloy |
| CS-DY2-50 | 50t | 20kg | 465 | 150 | 90 | 305 | 72 | Alloy |
| CS-DY2-100 | 100t | 50kg | 570 | 184 | 126 | 360 | 102 | Alloy |
///////////////////////////////////
// -->
