CRANE SCALES

Celtronic Automation introduces easy to use and reliable professional digital crane scales, for weighing in industrial environments. Thanks to their compact size, these crane scales just slightly reduce the lifting distance of the crane. Our crane scales are available in both wireless and wired options with capacity ranging from 100 kg to 100 tons, conforming to OIML – Class 3 accuracy.

One
One
One
One
One
One
Five
Four
Five
Five

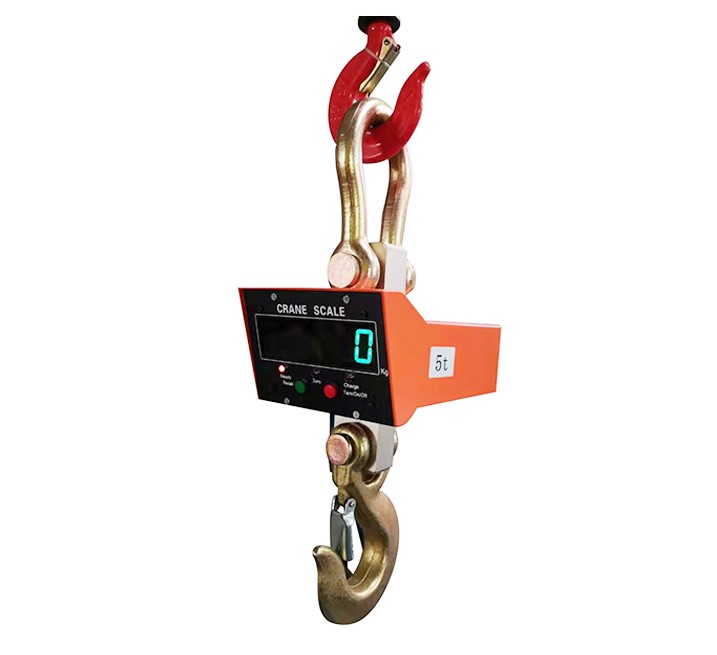

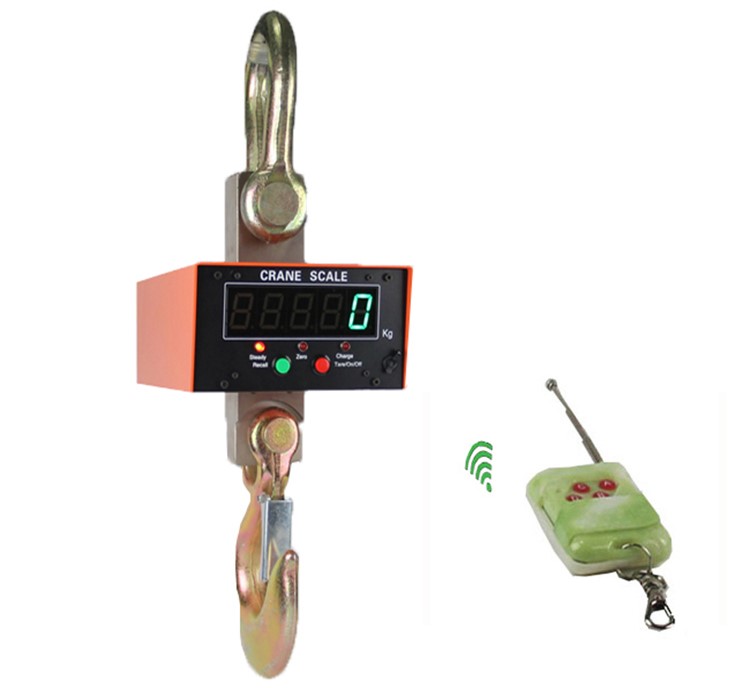

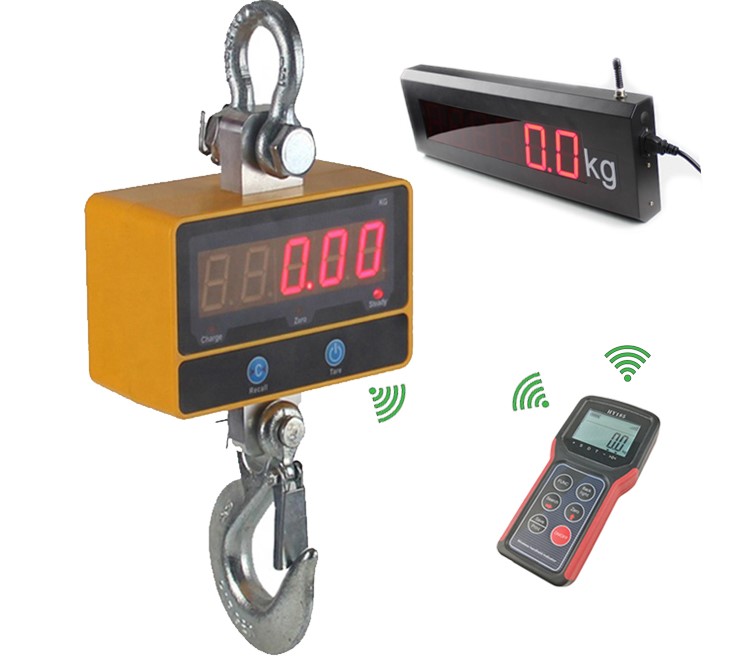

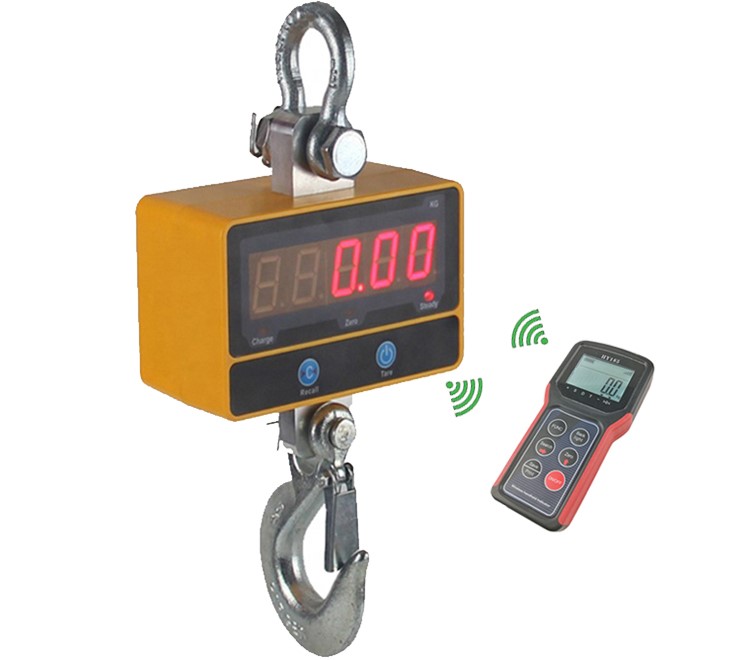

CS-ZS 1/2/3/5T

  • Capacity: 1/2/3/5t
  • Compact design.

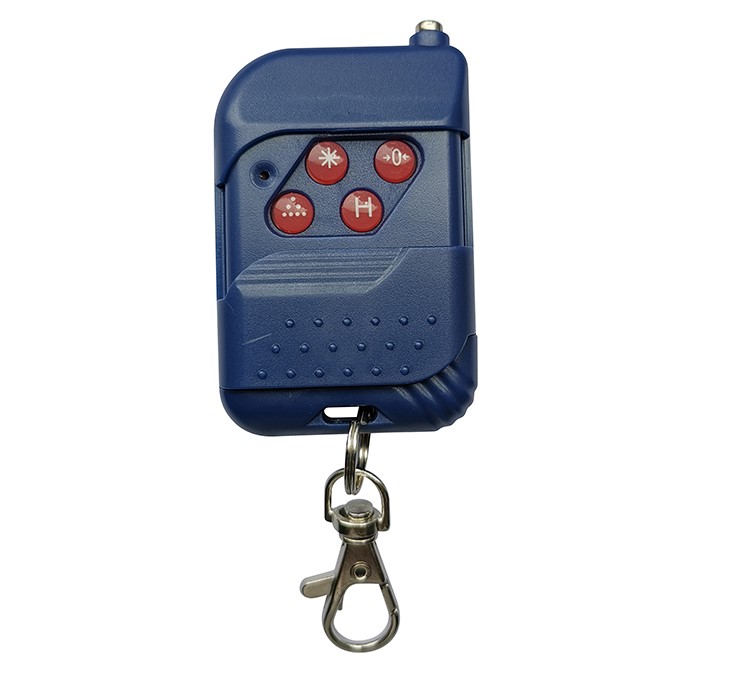

  • Wireless remote control for easy operation.
  • Large capacity battery – longer battery life.
  • Unique intelligent charging protection.
  • Automatic brightness adjustment.
  • Good dynamic weighing performance.
  • Overload, underload reminder display.
  • Low voltage alarm.


TECHNICAL PARAMETERS

  • Display: 5 digits, 30 mm LED High brightness.
  • Accuracy: OIML – Class 3.
  • Wireless communication module
  • Data transfer up to 1 Km distance
  • Up to 70 hrs battery back - up time.
  • Safe overload: 150% of FS
  • Ultimate overload: 300% of FS
  • Operating temp: -10 ~ 50 ℃
  • Humidity: 90% R.H
  • Reading stabilization time: 3S
    • Remote distance: 25M

Specification:

Model Max Cap.(Kg) Min. Weigh (Kg) Division (Kg)
CS-ZS -1 1000 10 0.5
CS-ZS -2 2000 20 0.5
CS-ZS -3 3000 20 1
CS-ZS -5 5000 40 1
CS-ZS -10 10000 100 2


CRANE SCALES

One
One
One
One
One
One
Two
Three
Four
Five

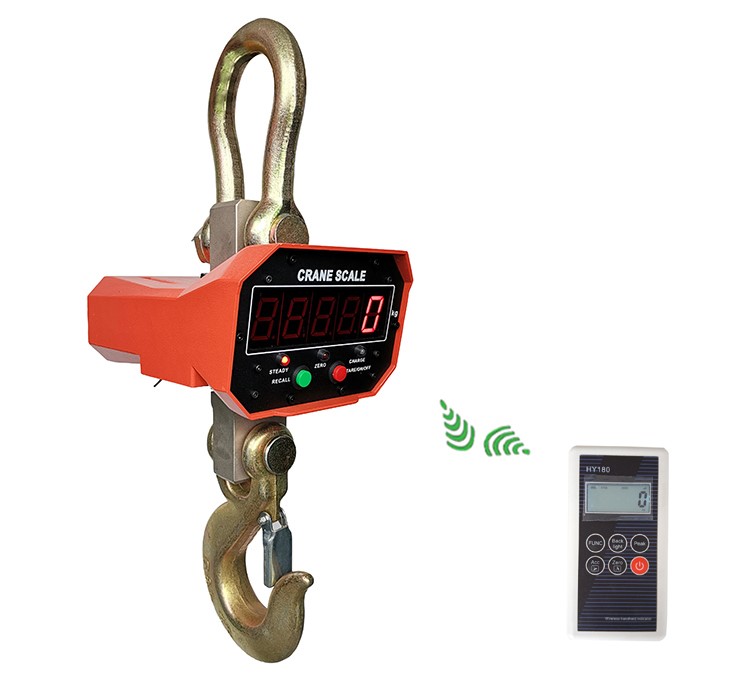

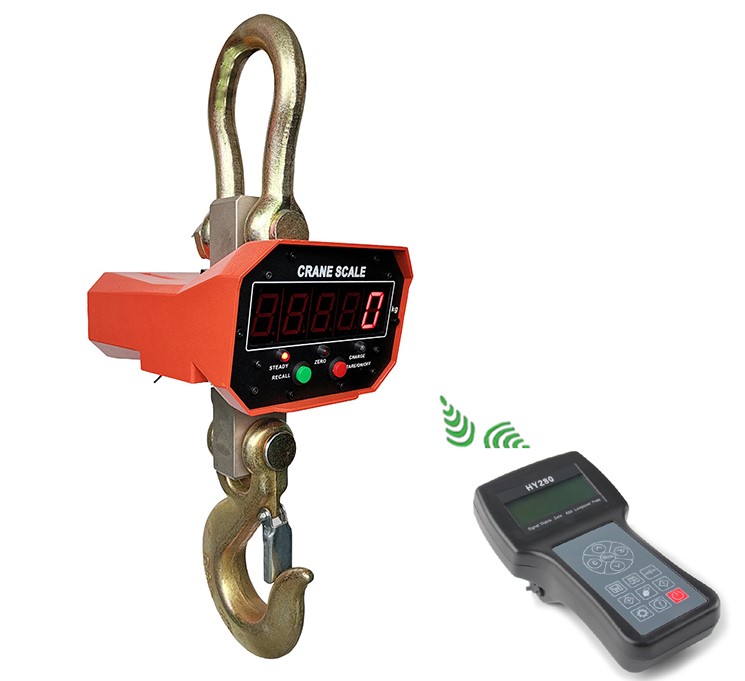

CS-ZS 10T

  • Capacity: 10t
  • Compact design.
  • Wireless remote control for easy operation.
  • Large capacity battery – longer battery life.
  • Unique intelligent charging protection.
  • Automatic brightness adjustment.
  • Good dynamic weighing performance
  • Overload, underload reminder display
  • Low voltage alarm


TECHNICAL PARAMETERS

  • Display: 5 digits, 30 mm LED High brightness.
  • Accuracy: OIML – Class 3.
  • Wireless communication module
  • Data transfer up to 1 Km distance
  • Up to 70 hrs battery back - up time.
  • Safe overload: 150% of FS
  • Ultimate overload: 300% of FS
  • Operating temp: -10 ~ 50 ℃
  • Humidity: 90% R.H
  • Reading stabilization time: 3S
  • Remote distance: 25M

Specification:

Model Max Cap.(Kg) Min. Weigh (Kg) Division (Kg)
CS-ZS -1 1000 10 0.5
CS-ZS -2 2000 20 0.5
CS-ZS -3 3000 20 1
CS-ZS -5 5000 40 1
CS-ZS -10 10000 100 2


CRANE SCALES

One
One
One
One
Two
Three

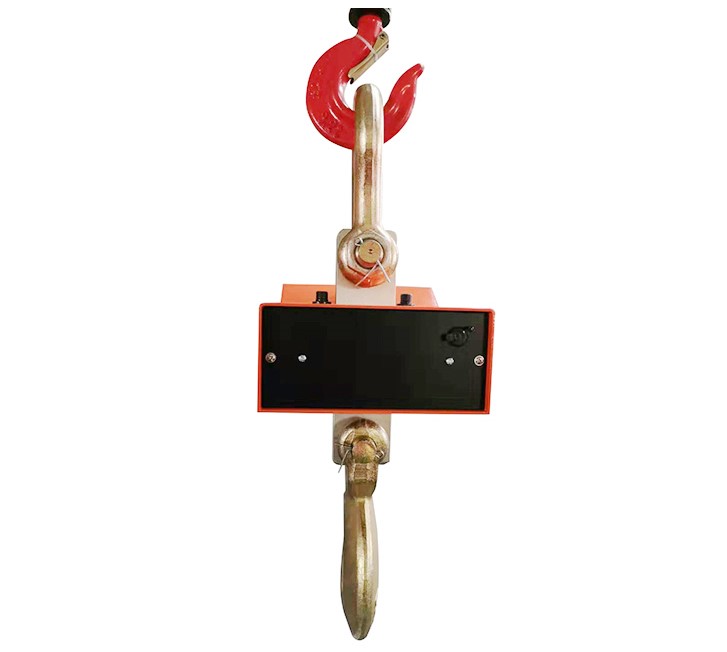

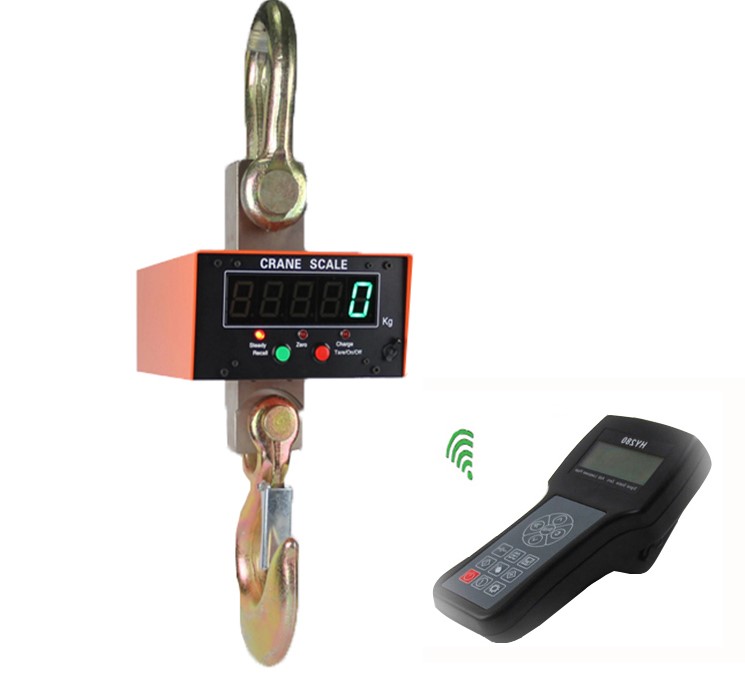

CS-ZS 15-50T

  • Capacity: 15/20/30/50t
  • Compact design.
  • Wireless remote control for easy operation.
  • Large capacity battery – longer battery life.
  • Unique intelligent charging protection.
  • Automatic brightness adjustment.
  • Good dynamic weighing performance
  • Overload, underload reminder display
  • Low voltage alarm


TECHNICAL PARAMETERS

  • Display: 5 digits, 30 mm LED High brightness.
  • Accuracy: OIML – Class 3.
  • Wireless communication module
  • Data transfer up to 1 Km distance
  • Up to 70 hrs battery back - up time.
  • Safe overload: 150% of FS
  • Ultimate overload: 300% of FS
  • Operating temp: -10 ~ 50 ℃
  • Humidity: 90% R.H
  • Reading stabilization time: 3S
  • Remote distance: 25M

Specification:

Model Max Cap.(Kg) Min. Weigh (Kg) Division (Kg)
CS-WZ -15 15000 20 0.5
CS-WZ -20 20000 20 0.5
CS-WS -30 30000 20 1
CS-WS -50 50000 50 1


CRANE SCALES

One
One
One
One
One
Two
Three
Four

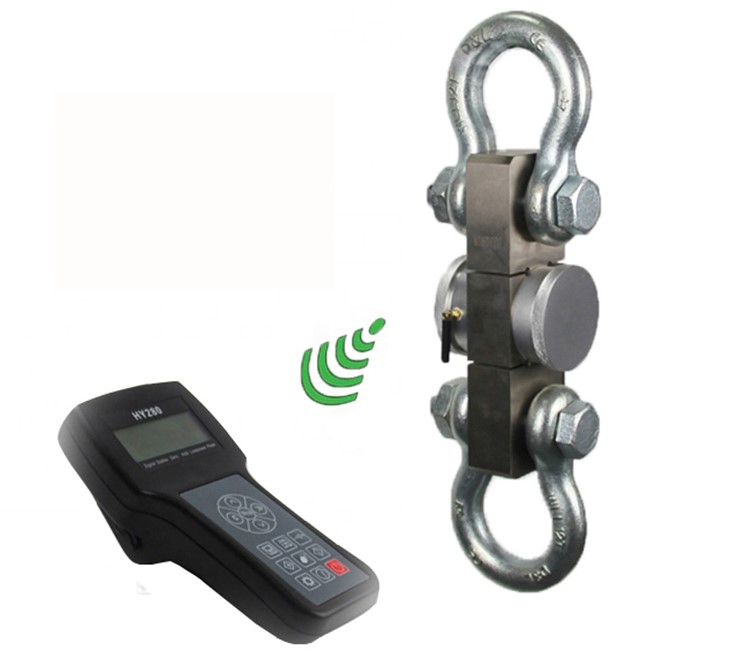

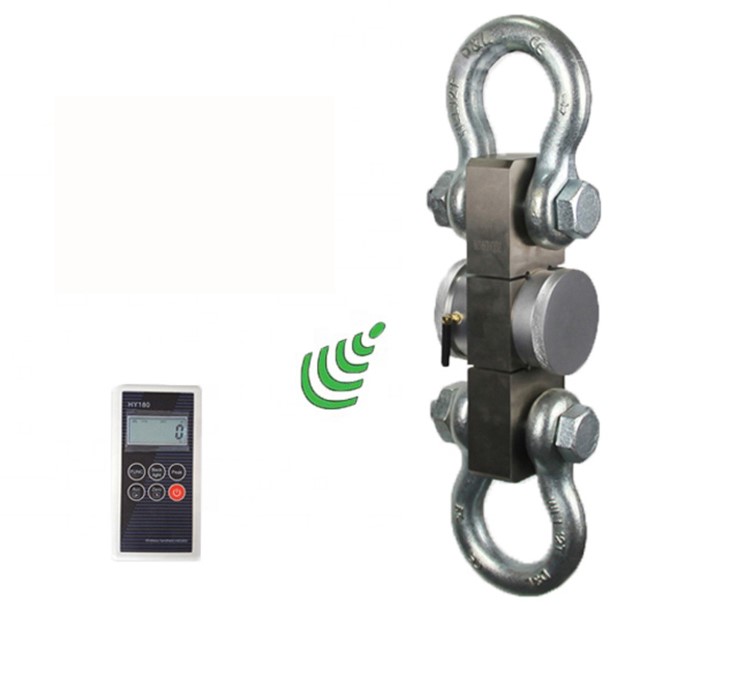

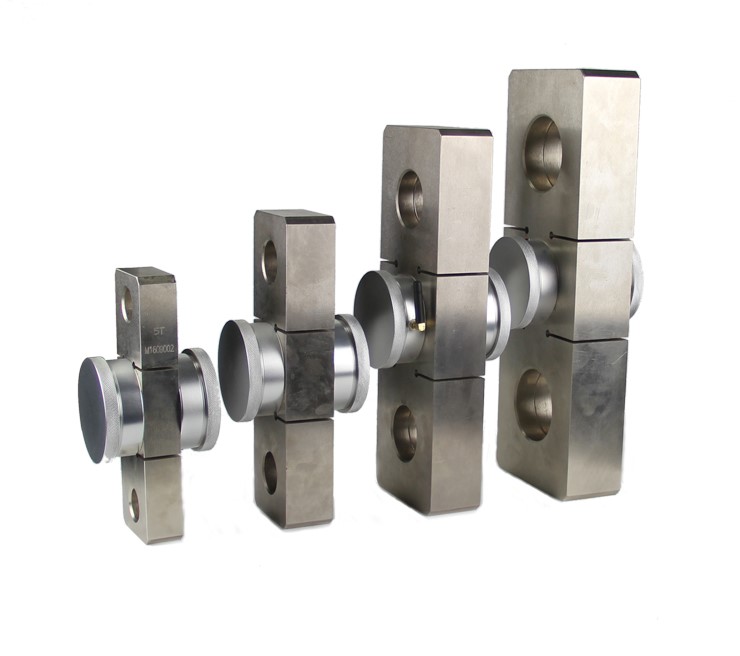

BHW 1 - 100T

  • Capacity: 1/2/3/5/10/25/30/50/100t
  • Compact design.
  • Wireless remote control for easy operation.
  • Large capacity battery – longer battery life.
  • Unique intelligent charging protection.
  • Automatic brightness adjustment.
  • Good dynamic weighing performance.
  • Overload, underload reminder display.
  • Low voltage alarm.


TECHNICAL PARAMETERS

  • Wireless Distance:---------------------- 200 meters
  • A/D Conversion:-------------------- Σ-Δ 24bit,  ≥50 times/seconds
  • Battery:--------------------------- AA 1.5 V*3
  • Combined error:-------------------- ±0.02% F.S
  • Creep error (30 min):--------------±0.02% F.S
  • Zero balance:---------------------- ±1% F.S
  • Temp. Effect On Zero:-------------- ±0.02% F.S/ 10℃
  • Temp. Effect On Span:------------- ±0.02% F.S/ 10℃
  • Operating temp:-------------------- -30~+ 70℃
  • Safe overload:--------------------- 120% F.S
  • Ultimate overload:----------------- 200% F.S
  • Sealing class:--------------------- IP 67/IP 68
  • Material:------------------------- Alloy steel / Stainless Steel

Specification:

CAP./SIZE A A1 B W Dia
5t 242 184 76 34 27
10t 290 200 90 47 37
20~25t 370 230 125 55 53
30t 370 230 130 55 59
50t 430 260 150 65 73
100t 570 340 210 108 102
Model Max Cap.(Kg) Min. Weigh (Kg) Division (Kg)
CS-BHW 5000 10 0.5
CS-BHW -110000 10 0.5
CS-BHW -2 20000 20 0.5
CS-BHW -3 30000 20 1
CS-BHW -5 50000 40 1
CS-BHW-10 100000 100 2


CRANE SCALES

One
One
One
One
One
One
Two
Three
Four
Five

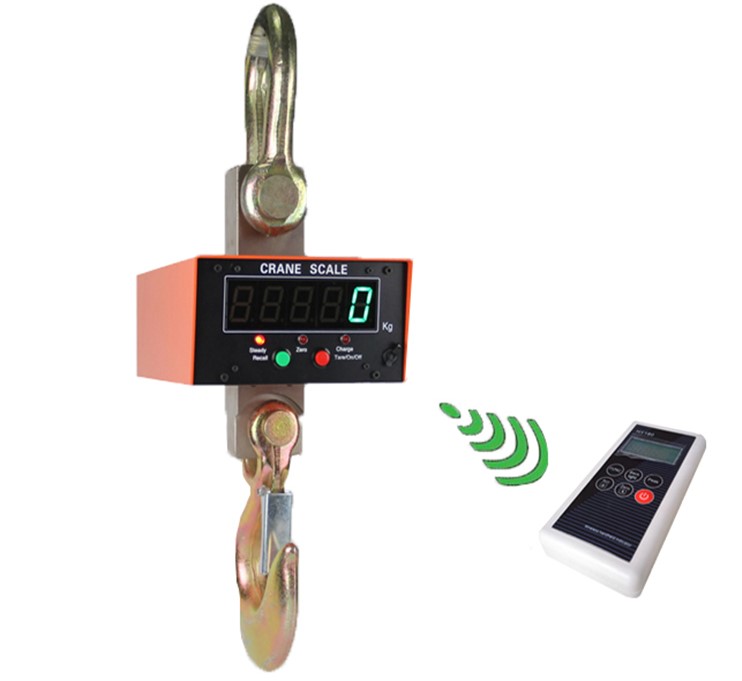

CS-WS 1/2/3/5/10T

  • Capacity: 1/2/3/5/10t
  • Compact design.
  • Wireless remote control for easy operation.
  • Large capacity battery – longer battery life.
  • Unique intelligent charging protection.
  • Automatic brightness adjustment.
  • Good dynamic weighing performance.
  • Overload, underload reminder display.
  • Low voltage alarm.


TECHNICAL PARAMETERS

  • Display: 5 digits, 30 mm LED High brightness.
  • Accuracy: OIML – Class 3.
  • Wireless communication module
  • Data transfer up to 1 Km distance
  • Up to 70 hrs battery back - up time.
  • Safe overload: 125% of FS
  • Ultimate overload: 300% of FS
  • Operating temp: -10 ~ 45 ℃
  • Humidity: 90% R.H
  • Reading stabilization time: 3S
  • Remote distance: 15M

Specification:

Model Max Cap.(Kg) Min. Weigh (Kg) Division (Kg)
CS-WS -1 1000 10 0.5
CS-WS -2 2000 20 0.5
CS-WS -3 3000 20 1
CS-WS -5 5000 40 1
CS-WS -10 10000 100 2


CRANE SCALES

One
One
One
One
Two
Three

CS-E1 100/200/300/500/1000 Kg

  • Capacity: 100/200/300/500/1000 Kg
  • Compact design.
  • Wireless remote control for easy operation.
  • Large capacity battery – longer battery life.
  • Unique intelligent charging protection.
  • Automatic brightness adjustment.
  • Good dynamic weighing performance.
  • Overload, underload reminder display.
  • Low voltage alarm.


TECHNICAL PARAMETERS

  • Display: 5 digits, 25 mm LED High brightness.
  • Accuracy: OIML – Class 3.
  • Wireless communication module
  • Data transfer up to 1 Km distance
  • Up to 70 hrs battery back - up time.
  • Safe overload: 125% of FS
  • Ultimate overload: 300% of FS
  • Operating temp: -10 ~ 45 ℃
  • Humidity: 90% R.H
  • Reading stabilization time: 3S
  • Remote distance: 15M

Specification:

Model Max Cap.(Kg) Min. Weigh (Kg) Division (Kg)
CS-E1 -1 100 1 0.05
CS-E1 -2 200 2 0.1
CS-E1 -3 300 2 0.1
CS-E1 -5 500 5 0.2
CS-E1 -10 1000 10 0.5
