WEIGHING INDICATORS

Celtronic Automation has introduced the most advance weighing indicators in the market. Increased digit size of up to 30 mm for regular indicators and up to 200 mm for jumbo displays helps better visibility even from a very long distance. With advanced options like wired and wireless modes, plastic and or steel body, red or green LED, and with printer or without printer models, Celtronic Automation has an indicator display unit for all your applications.

One
One
One
One
One
One
One
One
Two
Three
Four
Four

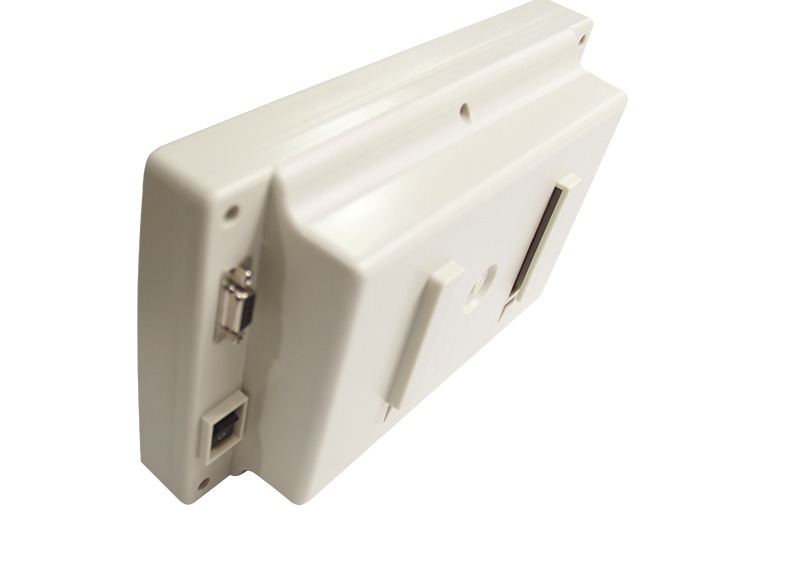

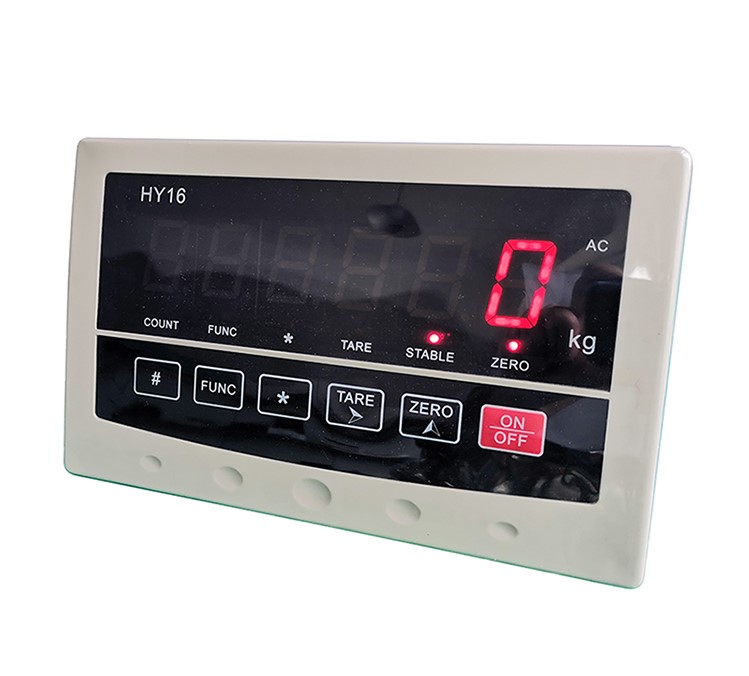

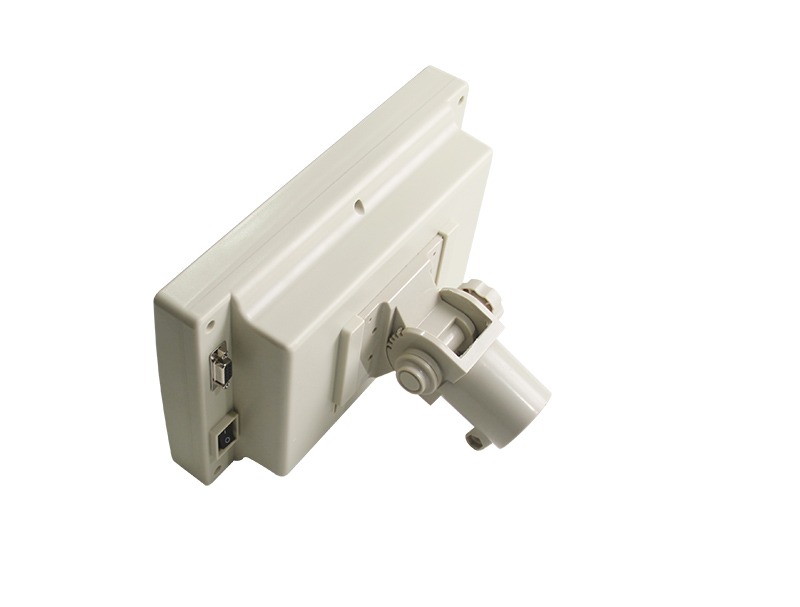

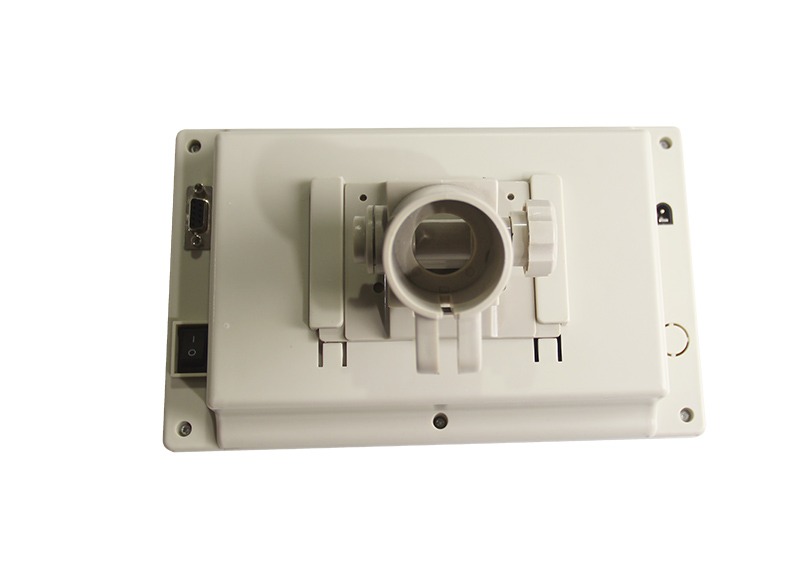

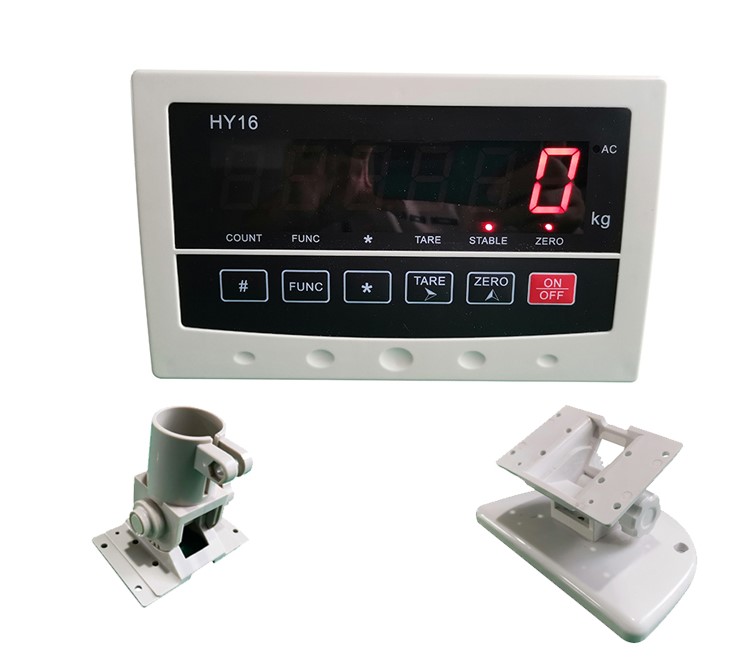

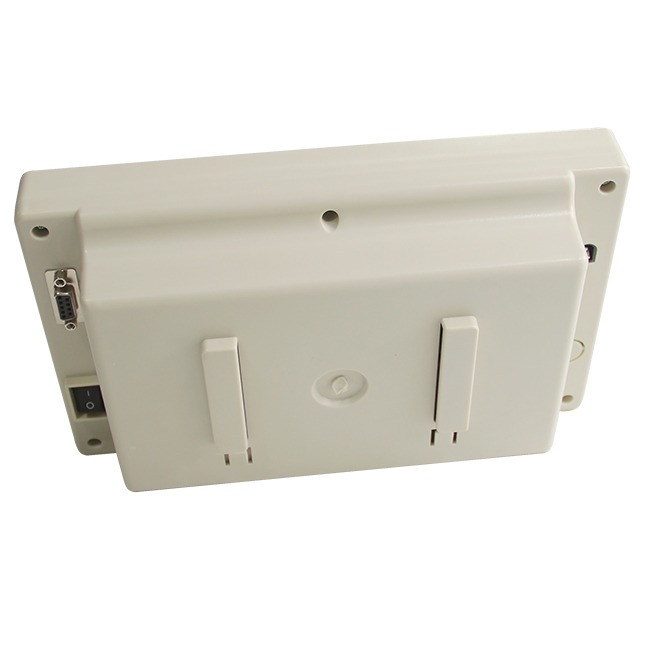

H16 – DIGITAL DISPLAY INDICATOR

  • 6 DIGIT, 30 mm LED DISPLAY
  • PLASTIC SHELL
  • RED / GREEN LED
  • PRINTER (optional)
  • WIRELESS (optional)
  • BUILT-IN RECHARGEABLE BATTERY.


TECHNICAL PARAMETERS

Model: H16
Type: Weighing Indicator (wireless
Accuracy: 24-bit AD
Sample rate: 10 times/s or 40 times/s
Load cell sensitivity: 1~3mV/V
Display: 6 bit 1.2" LED
Display colour: Red / Green
Division: 1/2/5/10/20/50/100 (Selectable)
Unit: kg / lb
External Interface: RS232 (optional)
Dimension: 250*155*70mm
Self-Weight: 0.5 Kg (without battery)
Power Supply: 6V/4A lead-acid /
Printer: Wireless Printer (optional)


One
One
One
One
One
One
One
Two
Three
Four
Five
Five

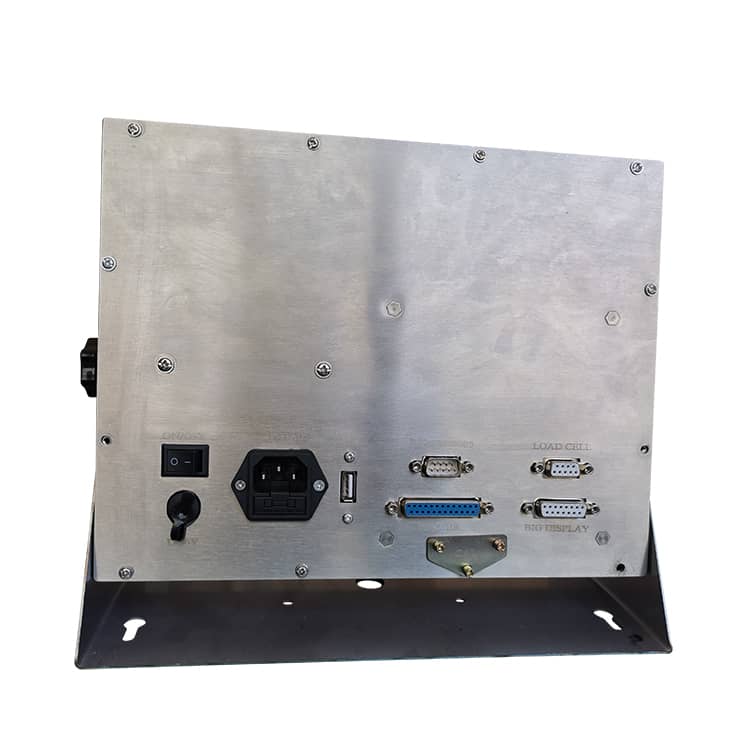

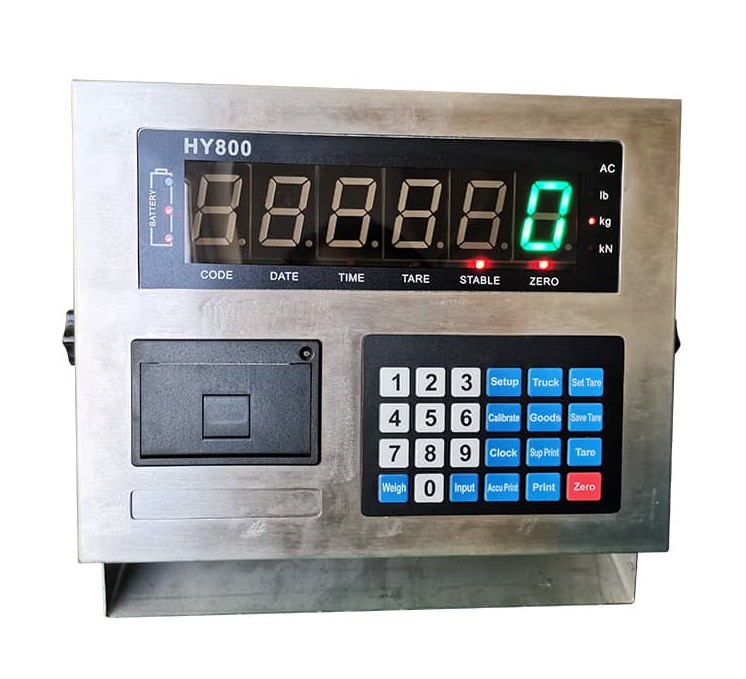

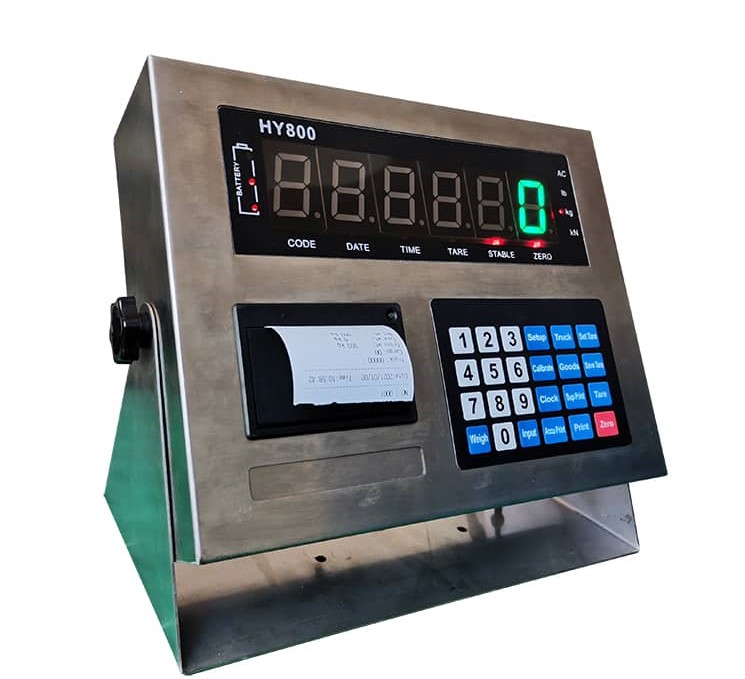

HY800 WEIGHING DISPLAY CONTROLLER

PRODUCT DESCRIPTION

  • STAINLESS STEEL BODY
  • RED / GREEN LED
  • PRINTER (OPTIONAL)
  • BUILT-IN RECHARGEABLE BATTERY


TECHNICAL PARAMETERS

Model: HY800
Analog signal input range: -20mV ~ +20mV
AD Internal conversion accuracy: 1/1000,000
Sampling rate: 80 times /s
AD Non-linearity: <0.01%FS
Loadcell excitation voltage: DC5V
Max. number of loadcell: 8 at 350 ohm/16 at 700 ohm
Display: 6 pcs 1.2 "LED
Keyboard: 0~9 numeric keys, 14 function keys
Clock: Year, Month, Day, Hour, Minute, Second, Leap year
Jumbo display interface: RS232
Communication interface: RS232 and RS485 Wireless (optional)
USB Interface: USB 2.0/3.0
Printer interface: Standard parallel port
Thermal printer: In-built (optional)
Data storage: 5,00,000 sets of weighing records, 1000 set of tares
Power supply: AC220V, DC6V/10A rechargeable battery
Operating temperature: -10 ~ 50℃
Humidity: 90% RH or less
Dimensions: 270mm x 210mm x 75mm
Self - weight: 3.5 Kg


One
One
One
One
One
One
One
Two
Three
Four
Five
Five

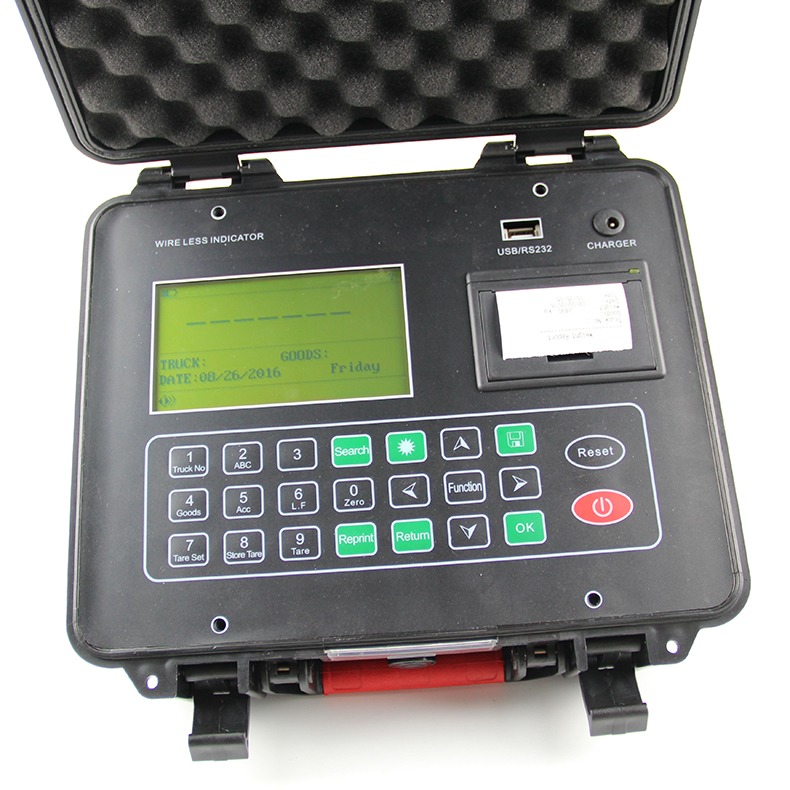

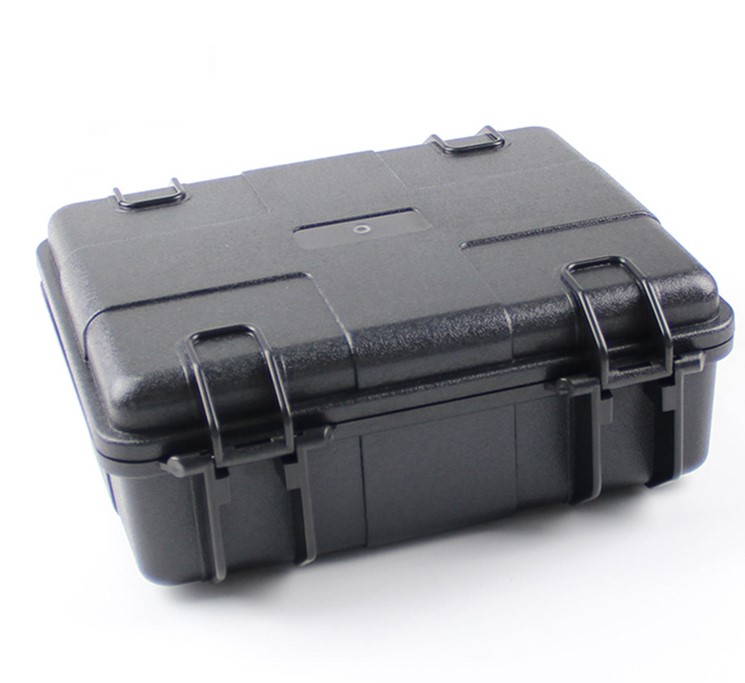

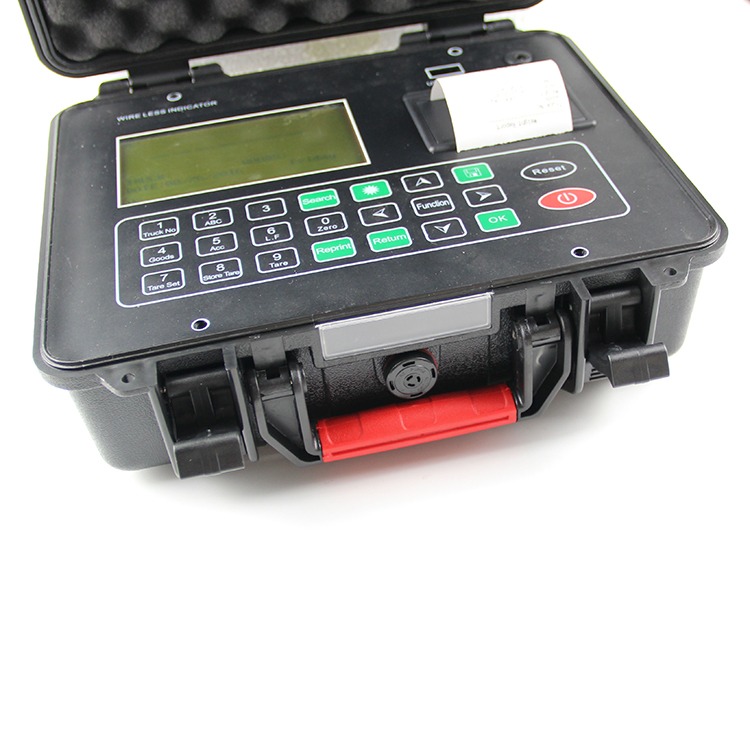

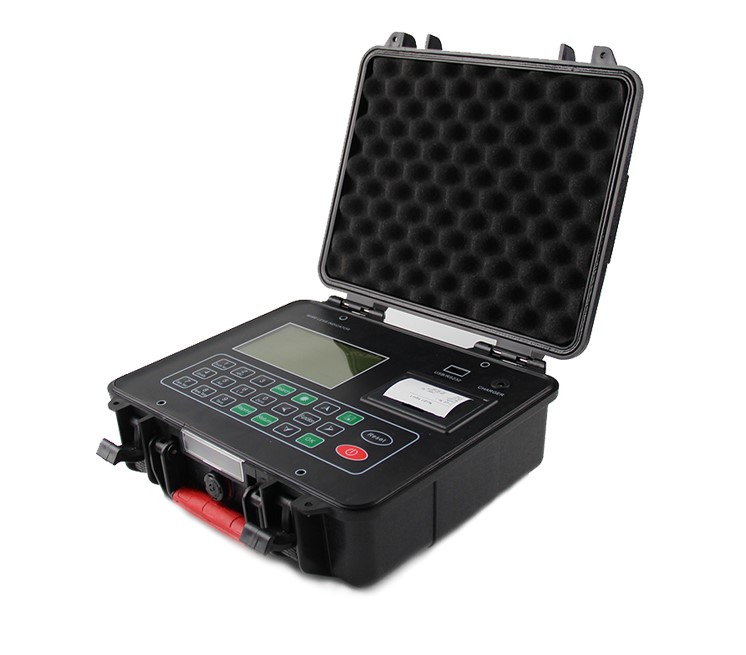

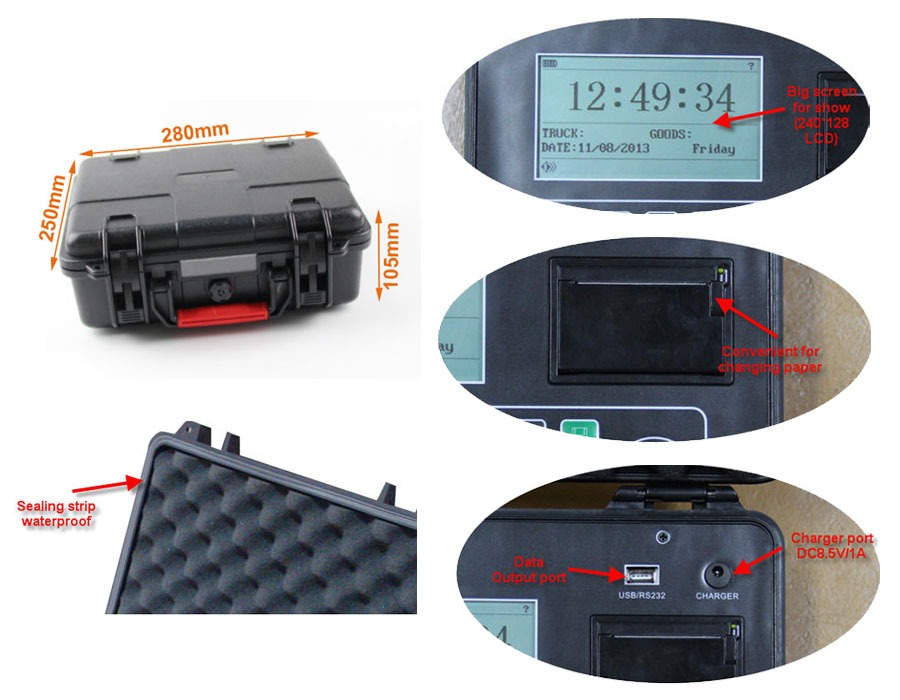

HY 680 / HY 680A TRANSPORT INDICATORS

PRODUCT DESCRIPTION

  • WIRELESS / WIRED DISPLAY INDICATOR
  • BUILT-IN MICRO PRINTER
  • BUILT-IN RECHARGEABLE BATTERY
  • KEYBOARD CALIBRATION
  • RS232 / USB COMMUNICATION

FUNCTIONS

  • Zero
  • Tare /Set Tare/Store Tare
  • Search/delete
  • Overload warning
  • Battery status indication
  • Resolution switch
  • Digital calibration
  • Date/time
  • Save & Print
  • Re-Print

TECHNICAL PARAMETERS

Display: 240*128 dot ,6 digit display
Units: kg/t/lb/kN
Division: 1/2/5/10/20/50/100 (Selectable)
Power supply: Rechargeable battery 7.4V / 5Ah or 8.4V / 1A charger
External interface: USB / RS232
Printer: Micro Printer
Operating temp.: -25°C~50°C
R/Humidity : 10%~85%, Non-condensing
Communication: Wired / Wireless
In-built data storage: Up to 5000 Records
A/D conversion method: Σ-Δ 24bit
Input signal range: –19.8mV~19.8mV
Load cell excitation: DC 5V
Working temperature: -40 ° C ~ 70 ° C
Wireless transmission Range: 300 meters (in open area)
Dimensions: 280 * 250 * 100mm
Weight: 2 Kg


One
One
One
One
Two
Three

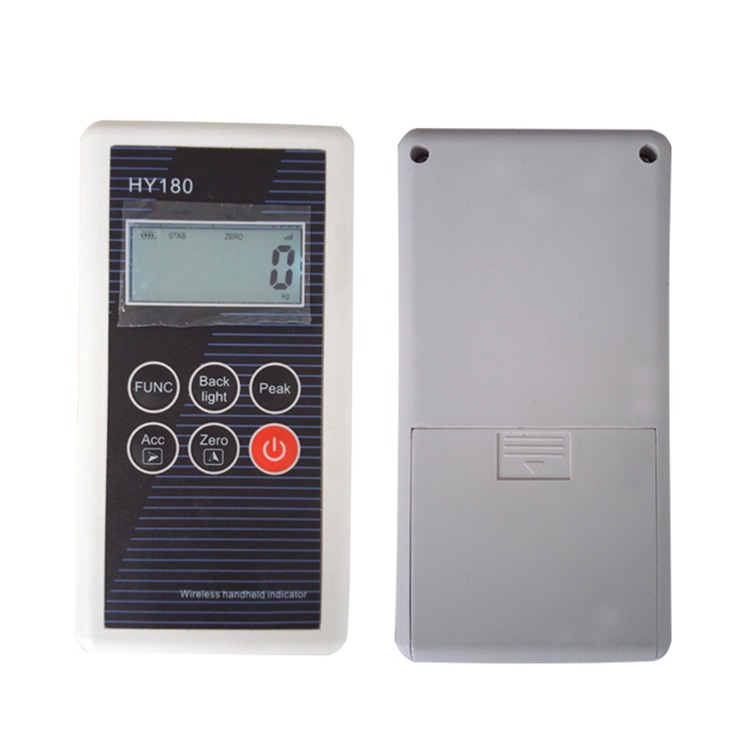

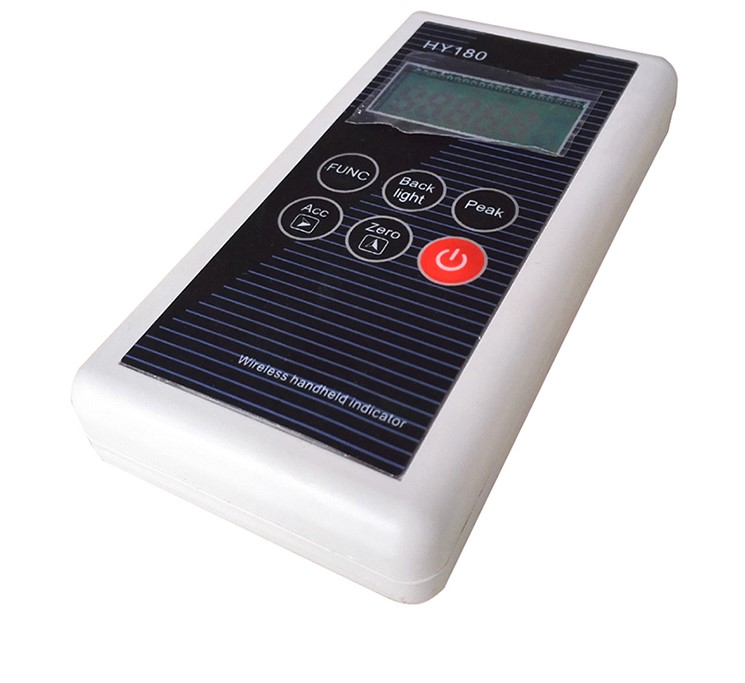

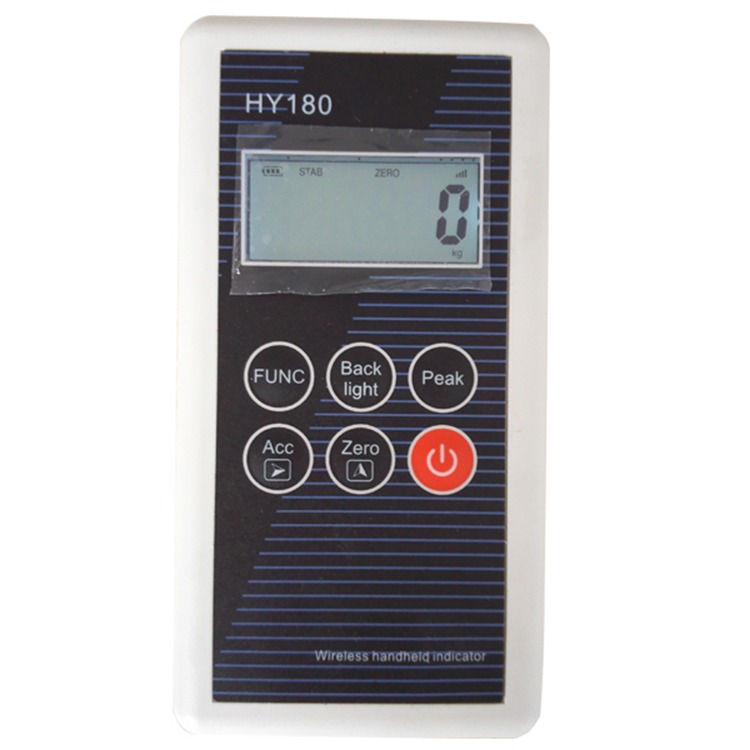

HY 180 WIRELESS HANDHELD INDICATOR

PRODUCT DESCRIPTION

  • MINI wireless indicator.
  • handheld wireless instrument.
  • 6 - bit LCD screen, Backlit display.
  • Print text in English.
  • Unit: kg / lb (Selectable)
  • Division: 1/2/5/10/20/50/100 (optional)
  • accurate internal clock and calendar
  • automatic shut down after half an hour of idle time.
  • Bidirectional data transfer functions.
  • Dimension:135*70*24mm
  • Power supply: DC1.5V AA X 3




One
One
One
Two

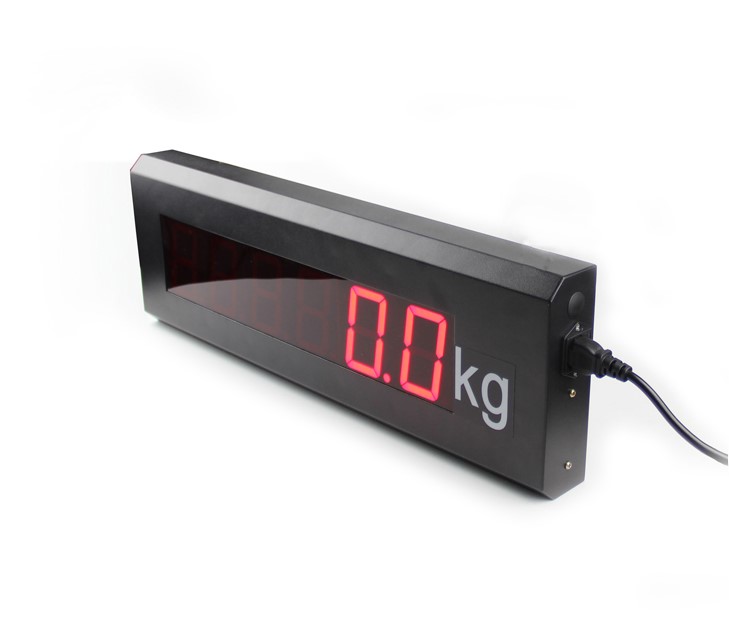

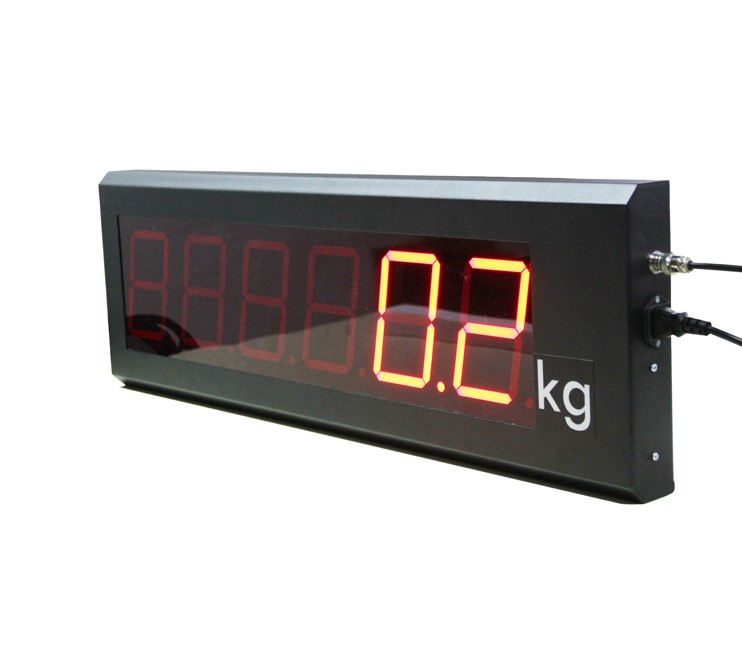

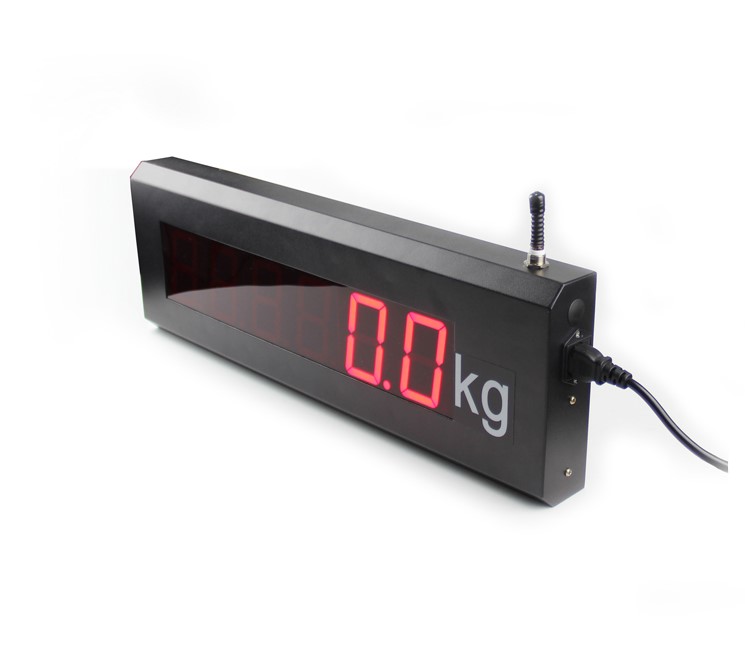

HY-BD JUMBO DISPLAY

PRODUCT DESCRIPTION

  • AUXILIARY DISPLAY UNIT
  • JUMBO DISPLAY
  • DYNAMIC SCAN LATCH TECHNOLOGY
  • ULTRA-HIGH BRIGHTNESS DIGITAL BLOCK

TECHNICAL PARAMETERS

  • Display: ----------- 6 Digit LED
  • Digit size: -------- 75 / 125 / 200 mm
  • Communication:- RS232
  • Power:------------- 230 V, 50 Hz




One
One
One
One
Two
Two

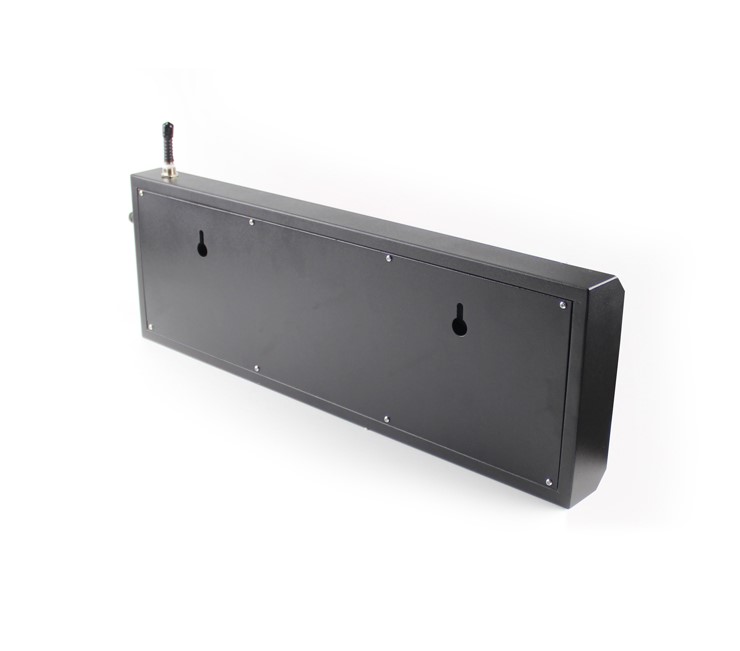

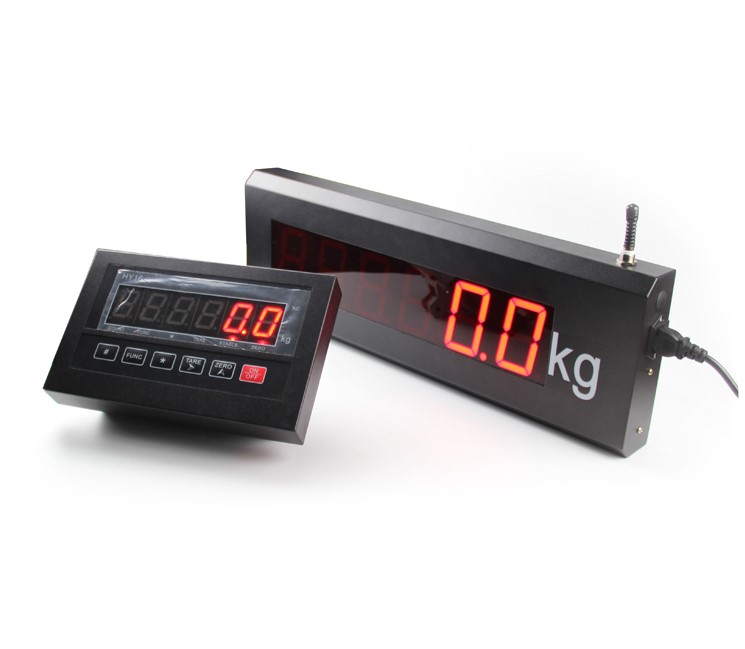

HY-BDW JUMBO DISPLAY (WIRELESS)

PRODUCT DESCRIPTION

  • AUXILIARY DISPLAY UNIT
  • WIRELESS DISPLAY
  • JUMBO DISPLAY
  • ULTRA-HIGH BRIGHTNESS DIGITAL BLOCK

TECHNICAL PARAMETERS

  • Display: ----------- 6 Digit LED
  • Digit size: -------- 75 / 125 / 200 mm
  • Communication:- Wireless
  • Power:------------- 230 V, 50 Hz
  • Distance:------------- 300 meters
